Wireless Pacific
XPAI-C14 X10DR DC Back-up, Power, Control & Audio Isolator
XPAI-C14 X10DR DC Back-up, Power, Control & Audio Isolator
Regular price
$220.00
Regular price
Sale price
$220.00
Unit price
/
per
Couldn't load pickup availability
With the growing prevalence of TDMA based radio systems ( P25 PH2, DMR , MotoTRBO, TETRA etc) The XPAI-C14 device complete isolation between the XLR gateway and the connected host mobile to prevent errant TDMA ground noise from the the host radio device being induced into the XLR gateway circuitry.
Specifically, the XPAI-C14 provides comprehensive Battery back up, DC to DC power isolation, audio transformer coupling for audio circuits and the use of optocouplers for all switching functionality such as PTT, COR, Emergency etc,
Use of the simpler design XDCI DC-DC power isolation module provides sufficient TDMA ground noise protection in many cases. We recommend the XPAI as it completely isolates the gateway's audio, control Ines and 12V vehicle DC power input from the host mobile radio.
Operational regulations in certain agencies may require vehicles to have their batteries disconnected from auxiliary electronic devices during periods of rest. In such situations, DC power may not be available to recharge X10DR Mics once they are placed back into the charging cradle at the end of the workday..

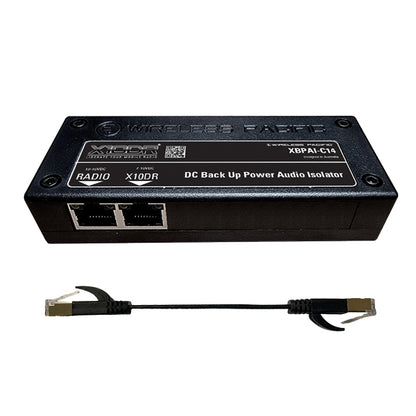

When the vehicle is in operation, the XBPAI-C14s internal batteries are recharged while also powering the attached X10DR devices. When the Wireless Microphone is returned to the gateway cradle, it will immediately begin recharging from the vehicle battery if available, or from the built in backup 8.4V 1450mA internal battery supply.

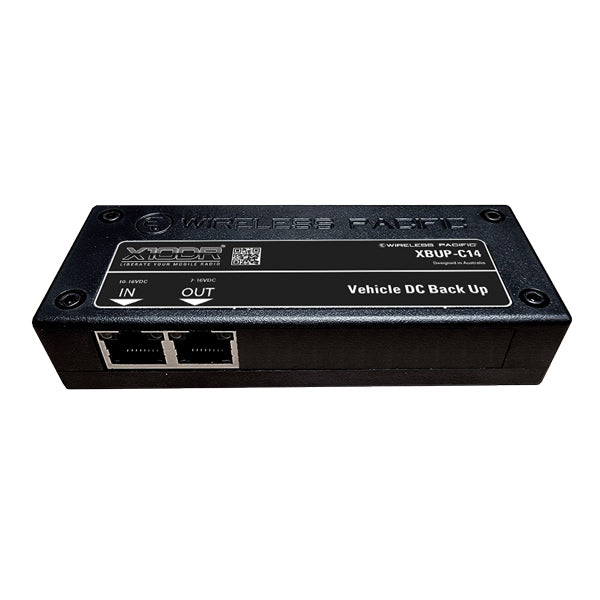

The one device is designed to completely recharge a fully depleted wireless microphone battery sitting in its gateway charger. Should the installation include a 2nd or 3rd wireless microphones with allied XMVC mobile chargers, we recommend that these should be ideally individually connected via a dedicated XBUP-C14 device or use with a X3MK-B 3 way mounting kit or combinations thereof.. You can however expect to recharge two 80% depleted Wireless Microphones from the one shared XBPAI-C14. Us a XDIA dual adaptor and desired XIC interface cases to share the power bank.
