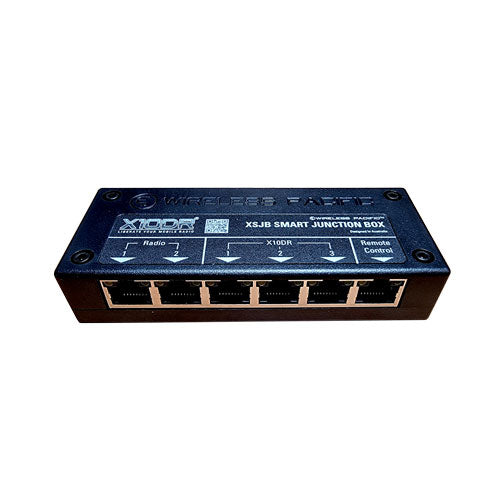

Advanced XFSB Fire Front Smart Box

Provides for dual radio (Sat Terminal/LTE/ ROIP etc) control with single/dual/triple gateway connectivity or alternatively to provide two custom handset button driven switched outputs to attached 3rd party devices. Refer to XSJB/XFSB installation instructions for further details.

Dual-radio transmit is achieved by programming that handset such that a short press of the top Yellow button, so it toggles the main PTT button to transmit on radio 1  or radio 2. ( LEDS glows Blue) or Radio 2 ( LED glows Red). A usual, continue to use the side Grey button to toggle to local Talkaround (LED glows Green).

All received audios are mixed and sent to all handset/s. If desired, either radio's receptions can have a short audio beep attached to the end of each reception that users can be sure on which radio the reception occurred. The audio level adjustments allow you to set transmit and receive volume levels to each radio as well as the audio level of the receiving radio's audio tag.

A single XFSB Smart Box allows three XLR XRTG, XIVG (or standard) gateways allowing handsfree full duplex operation between all direct gateway connected handset users (Headsets/earpieces required).

XCCP Connectivity

Additionally, the XFSB can also be used with an XCCP the Console Command Panel to allow provide a Commander / Supervisor to decide what but can monitor or talk over which  radio.

This configuration provides five X10DR Elite Plus handsets, one for the Commander and two handsets for subgroup A and another two handsets on subgroup B.

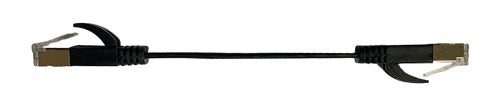

The package includes one XIC-0.15 flat, 15cm interface cable.

Note: Use of XPAI 12V DC-DC isolation adaptor is highly recommend when connecting to TDMA host radios example: P25 Phase 2/DMR/Mototrbo/TETRA etc
