XBPAI-C14 X10DR DC backup and Power & Audio Isolator
XBPAI-C14 X10DR DC backup and Power & Audio Isolator
Regular price
$150.00
Regular price
Sale price
$150.00
Unit price
/
per
Couldn't load pickup availability
Operational regulations in certain agencies may require vehicles to have their batteries disconnected from auxiliary electronic devices during periods of rest. In such situations, DC power may not be available to recharge X10DR Mics once they are placed back into the charging cradle at the end of the workday.

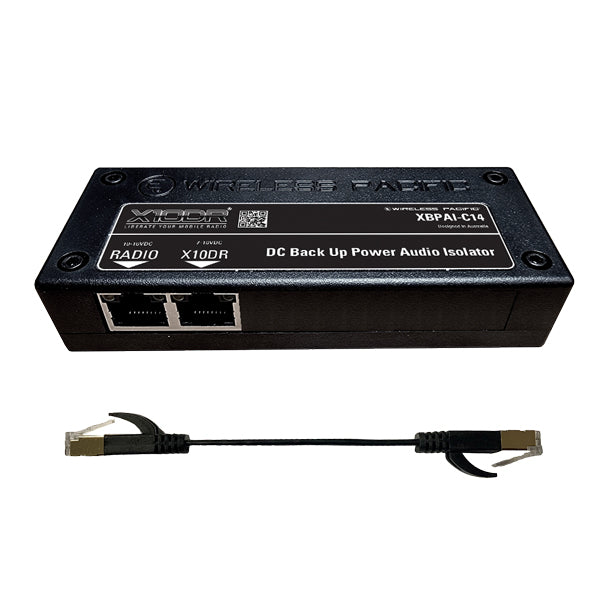

To address this issue, Wireless Pacific has developed the XBPAI-C14 Backup Power Audio Isolator, which includes an in-line 6-inch XIC-0.15 interface cable for connecting the X10DR gateway cradle to the host mobile radio. This unique product is designed to provide after-hours charging for X10DR Wireless Microphones in vehicles where the battery is completely isolated while the vehicle is not in use.
When the vehicle is in operation, the XBPAI's internal batteries are recharged while also powering the attached X10DR devices. When the Wireless Microphone is returned to the gateway cradle, it will immediately begin recharging from the vehicle battery if available, or from the built in backup 8.4V 1450mA internal battery supply.
The one device is designed to completely recharge a fully depleted wireless microphone battery sitting in its gateway charger.
Additionally, with the growing prevalence of TDMA based radio systems ( P25 PH2, DMR , MotoTRBO, TETRA etc) The XBPAI device complete isolation be=ween the XLR gateway and the connected host mobile to prevent errant TDMA ground noise from the the host radio device being induced into the XLR gateway circuitry.
Specifically, the XBPAI provides comprehensive DC to DC power isolation, audio transformer coupling for audio circuits and the use of optocouplers for all switching functionality such as PTT, COR, Emergency etc,
Should the installation include a 2nd or 3rd wireless microphones with allied XMVC mobile chargers, then these should be individually connected via a dedicated XBPB-C14 Back Up Power only devices (No DC Power Audio Isolation).
