Wireless Pacific

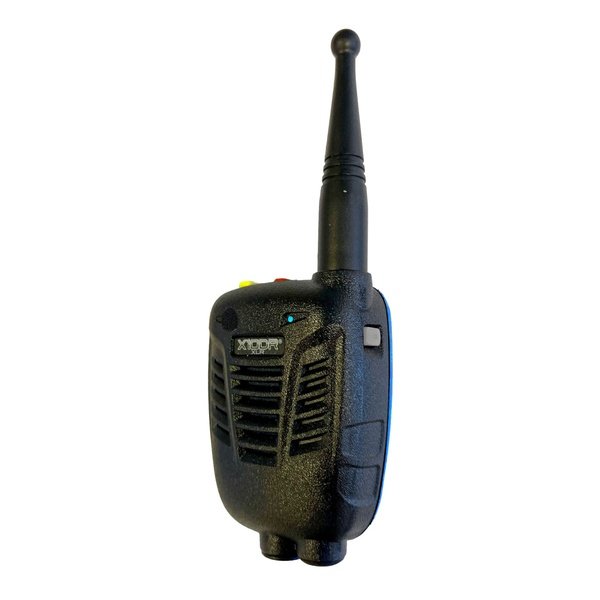

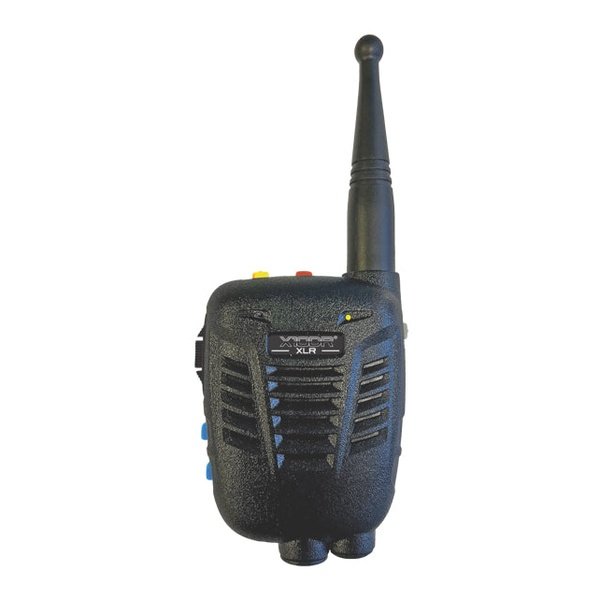

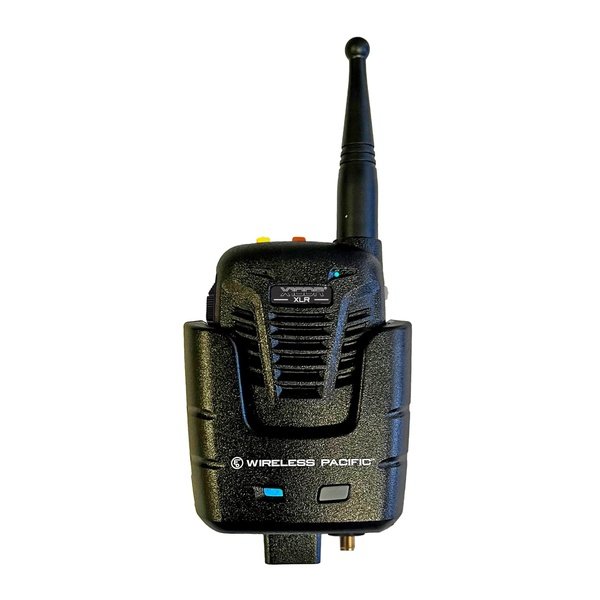

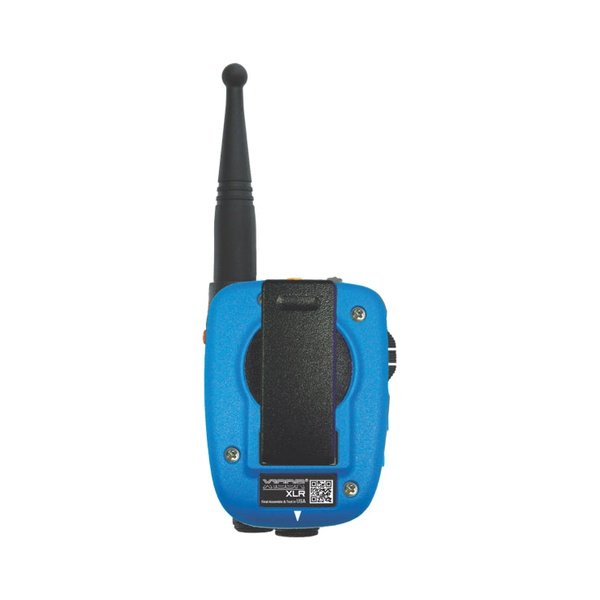

X10DR XLR Single User - Model: X10DR-XLR

X10DR XLR Single User - Model: X10DR-XLR

Regular price $898.00
Regular price Sale price $898.00
Sale Sold out

Our new, Made In USA** XLR X10DR Wireless Microphones not only provide cutting-edge on-site local team coverage but the best in class "Out Of Vehicle" communications solution in the industry today. Highly acclaimed, they provide the highest levels of AES tactical encryption protection available. XLR Wireless Microphones can typically communicate up to 1600ft, line of sight from their vehicle. However, when in auto relay mode  coverage up to 2400ft is possible with a distant Wireless Microphone, via a centrally placed Wireless Microphone. They are an obvious choice for those that require Dual Control Head radio functionality.

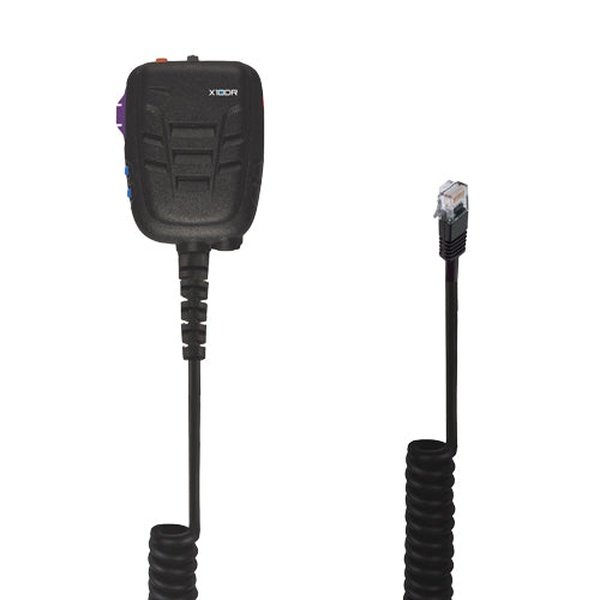

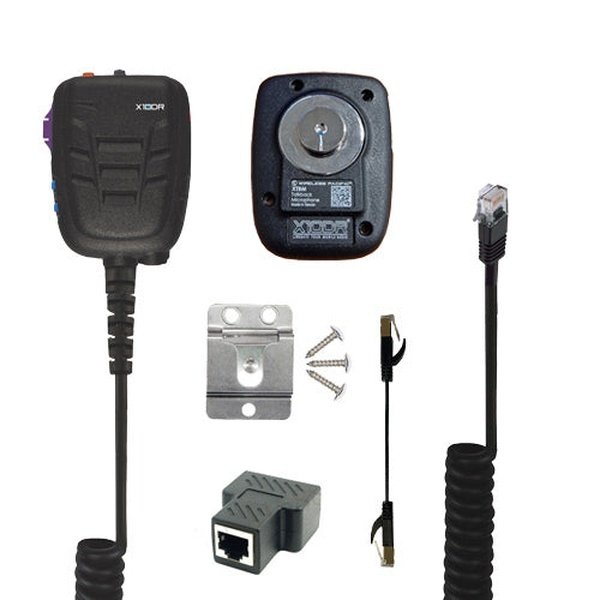

For additional local on-site team communications, should the driver usually remain in the vehicle, an XTBM Talkback Mic can be installed so they can also monitor and communicate locally with their out-of-vehicle work partner/s.

XLR Hardware Creations:

XLR features a number of innovative and unique creations to allow X10DR better integrate with the attached radio solution and to enhance the user's operational needs and effectiveness. While there is no change in the form factor of significance from the prior XLR series it's the non-visible capabilities that again provide industry leadership:
- Loud speaker audio for noisy traffic jams or wild stormy conditions.
- Enhanced receive audio when connecting to breathing apparatus etc
- Mandown Monitor Model:  triggers the radio's emergency input if the user is immobile for longer than the defined timing parameter and also their work crew locally .

Breakthrough Leadership firmware:

Where two wireless microphones are deployed, Automatic dynamic Relay Mode provides continued use away from the vehicle , where the two XLR Wireless Microphones can dynamically connect with themselves to keep communicating locally wherever the Wireless Microphones move (up to 800ft LOS range) in both talkaround and user-selectable handsfree mode. Naturally they automatically re-connect with the vehicle when back in range. Programmable Side PTT button re-assignment where the user can instantly re-assign the large side PTT button from transmitting over the radio network to talking locally on-site.

XLR Hardware Creations:

XLR features a number of innovative and unique creations to allow X10DR better integrate with the attached radio solution and to enhance the user's operational needs and effectiveness.
- Loud speaker audio for noisy traffic jams or wild stormy conditions.
- Enhanced receive audio quality when connecting to breathing apparatus etc
- Mandown Monitor which locally alarms your nearby partner besides triggering the radio's emergency input, should the user become immobile for longer than the defined timing parameter.
- For extended operation, external battery operation/charging capability using an XEBC external battery cable and any cellphone type power bank..

Product Summary:

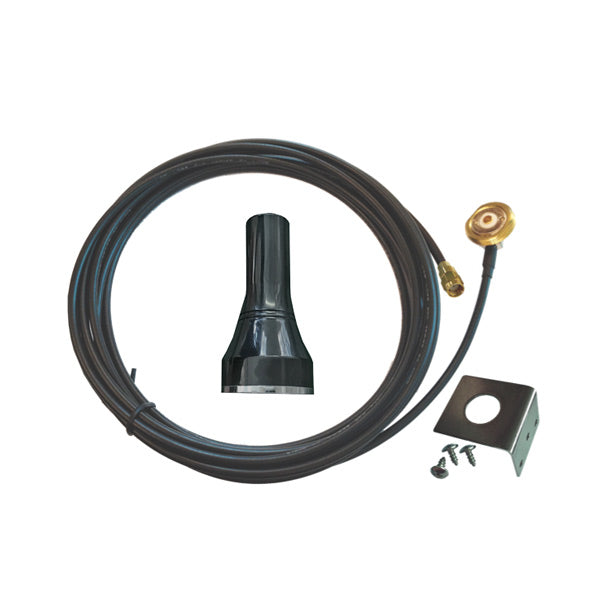

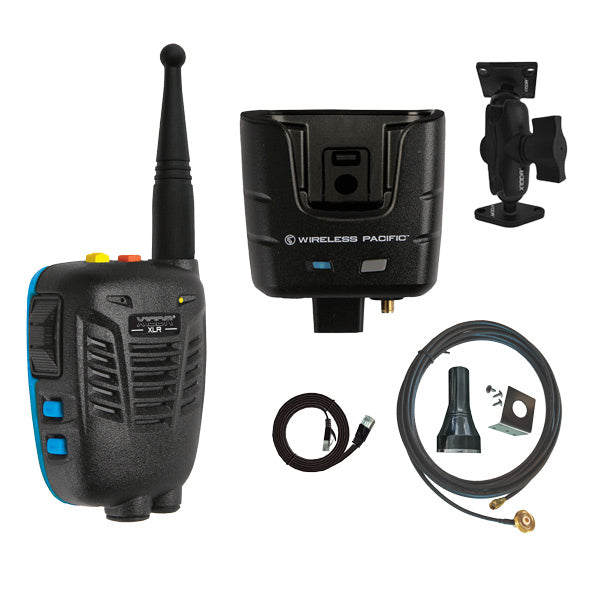

Single User -Automatic Relay mode, IP67 waterproof rated Wireless Microphones - Emergency duress call - Mandown Monitor, Toggle Network or local Talkaround PTT - Local handsfree intercom - Hirose Headset audio port - 3.5mm earlier jack - Enhanced ground independent antenna -1450mA Li-Polymer battery - integrated long non-metal clip - magnetic latching cradle Vehicle  installation kit, Multipolarity roof or rack mount antenna including 17ft low loss LMR200 -  User card - 12-month warranty.

The XLR Wireless Microphones provide up to 14 hours of operation from a single charge and also allow the use of an external Li-Ion power bank for extended multi-day usage. (requires the use of a XEBC external battery cable and USB style power bank.) Both desktop and vehicle mount chargers are available.

All XLR Wireless Microphones are equally at home connected via a vehicle or office mounted radio console, LTE-PoC, sat-link, HF-SSB, Airband, etc communication device to the outside world. When used as such, the user's Wireless Microphones signal is typically repeated by a centrally located X10DR XLR gateway, which also provides the interconnection to land mobile, Iridium PTT, Satellite, or console devices.

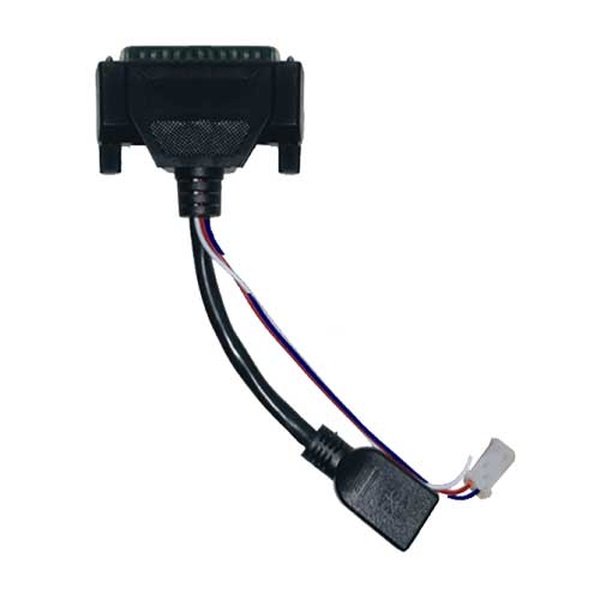

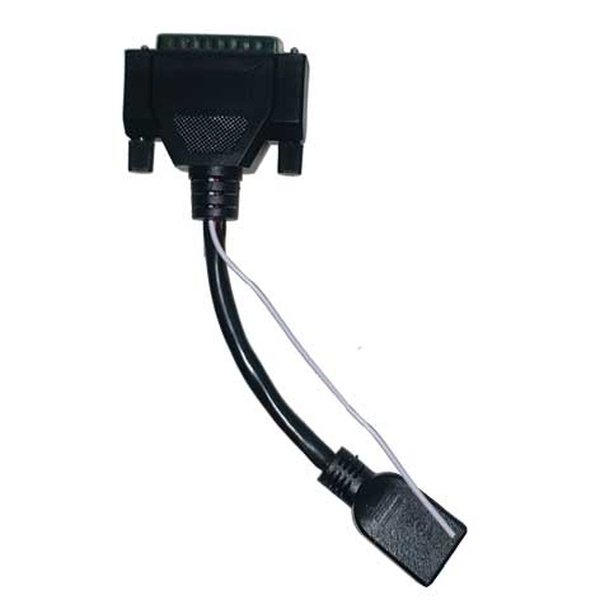

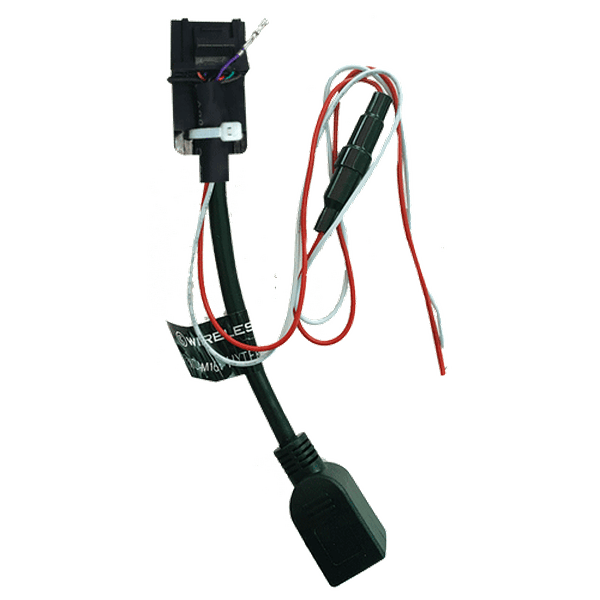

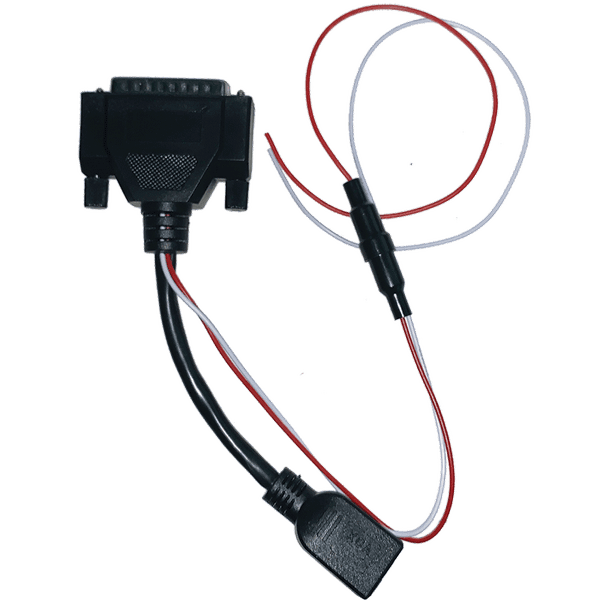

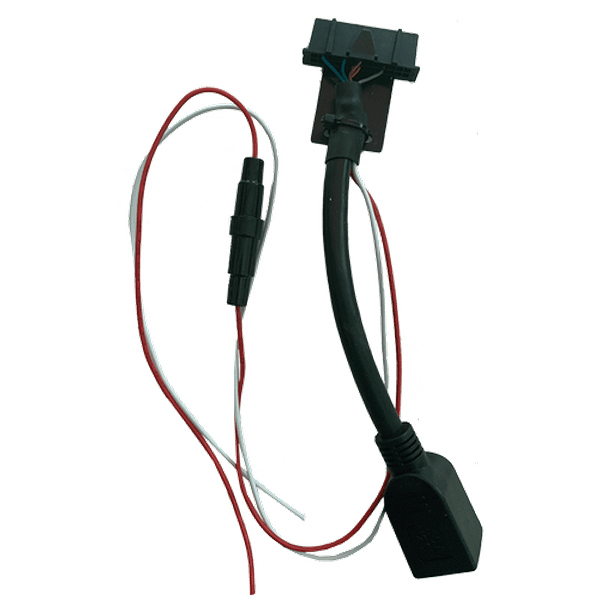

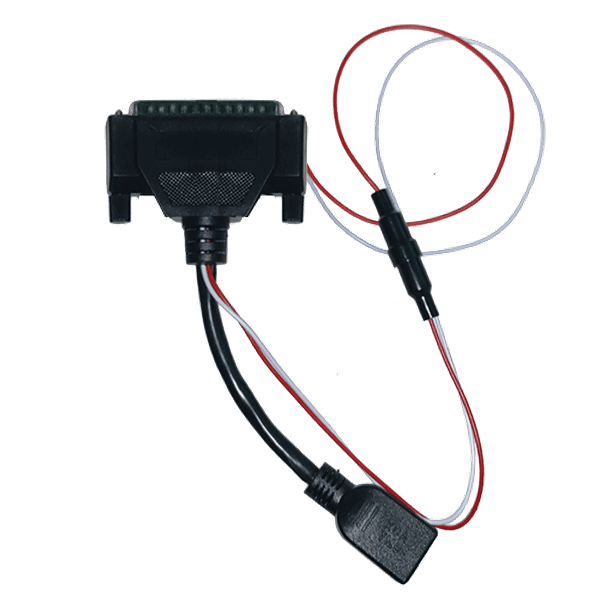

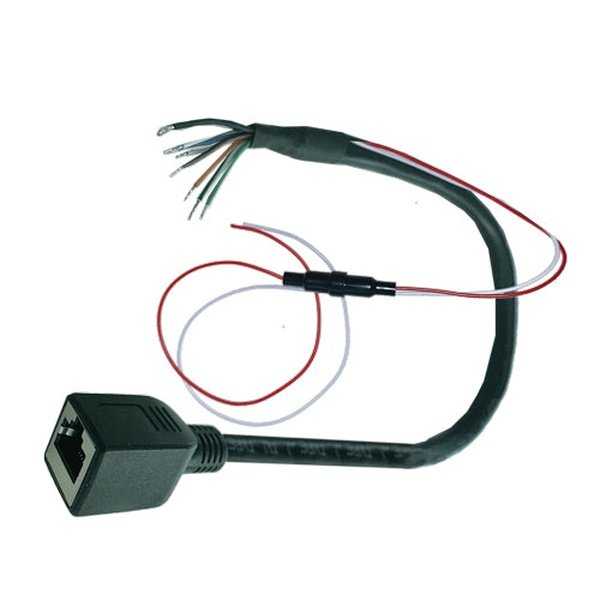

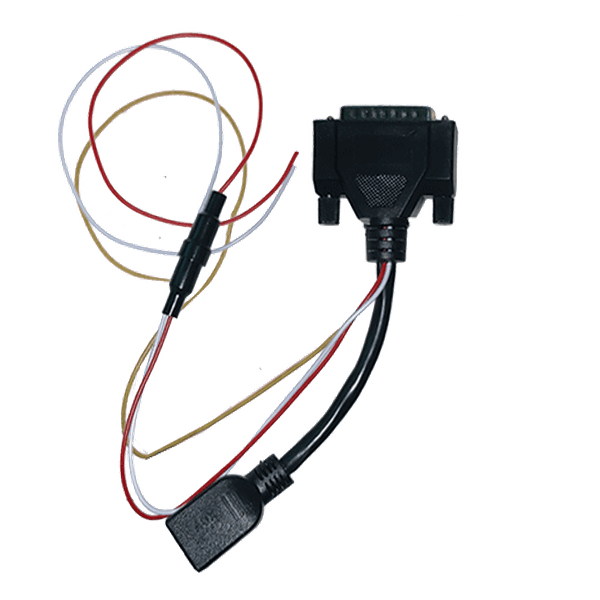

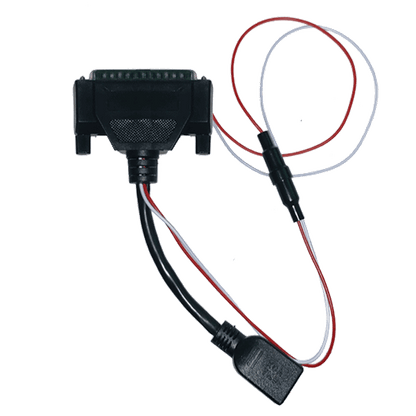

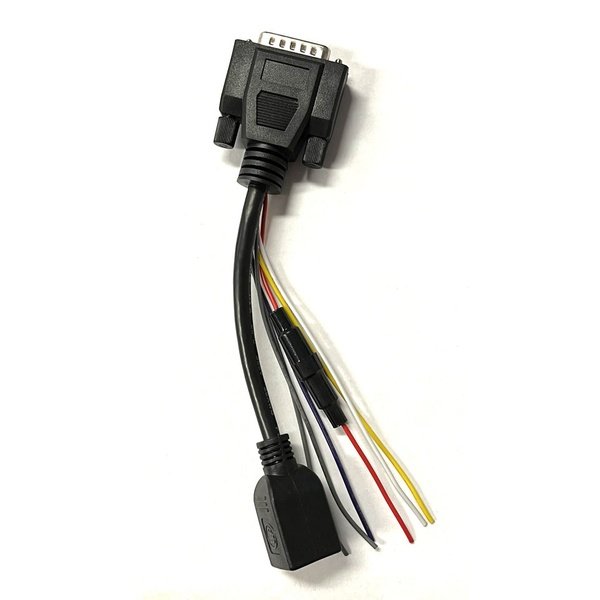

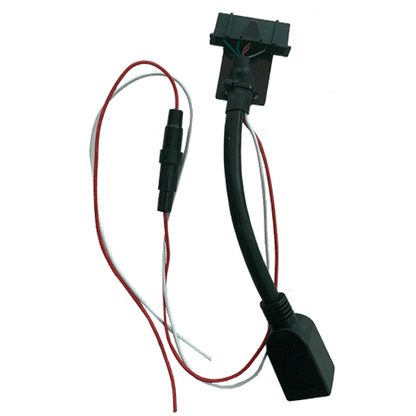

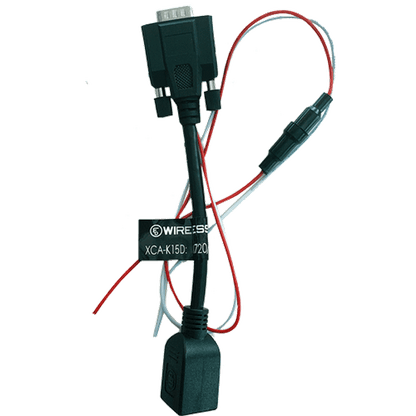

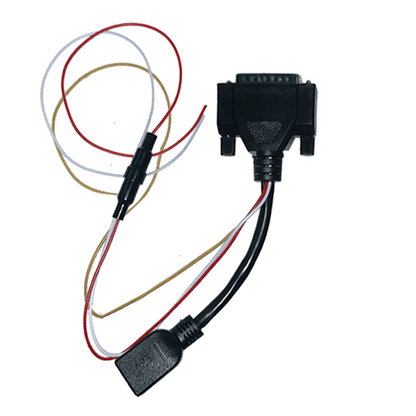

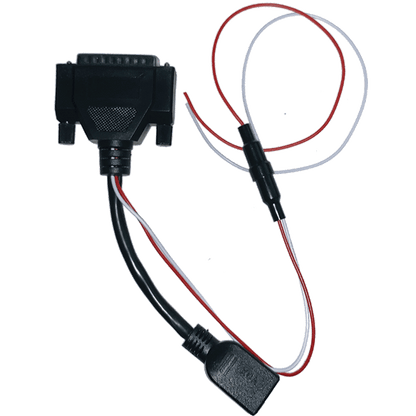

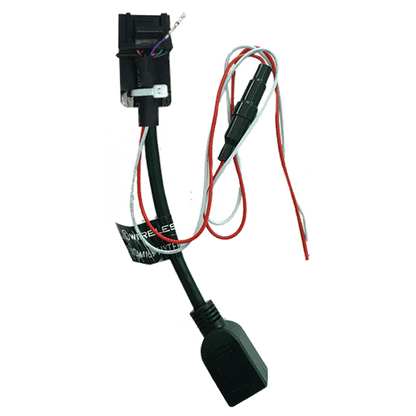

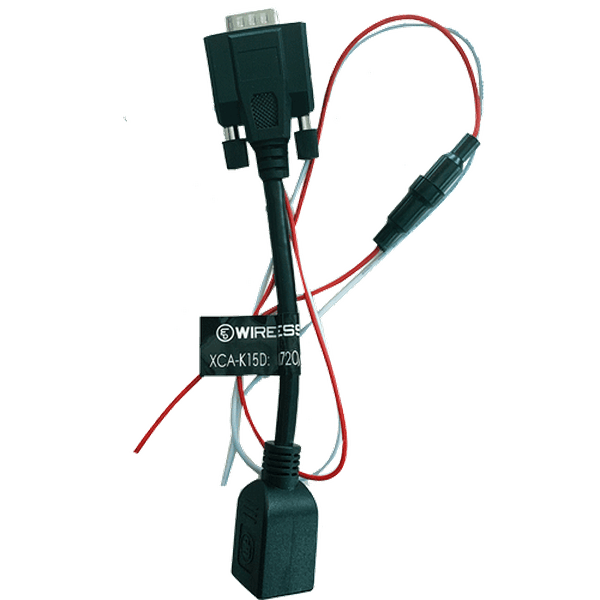

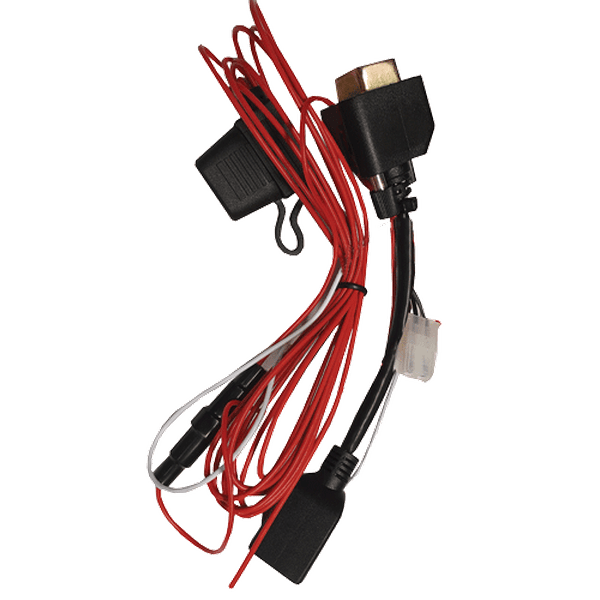

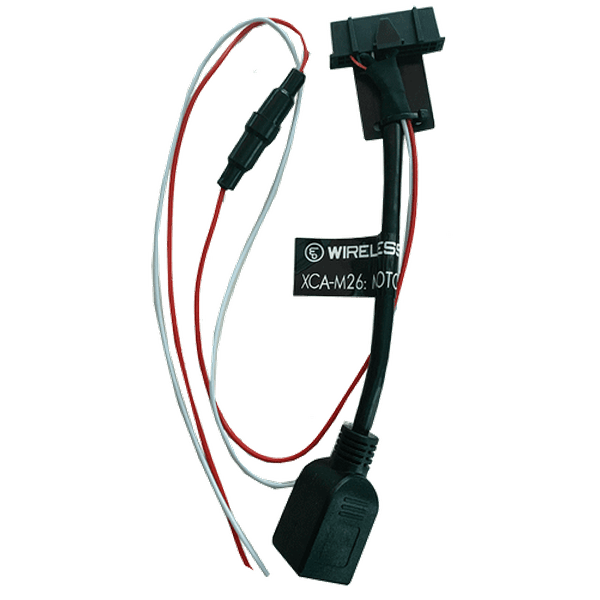

Order the XCA Interface Cable to suit your mobile radio from the drop-down box when purchasing to complete your vehicle fit-out. Please review the XCA Master Charts for mobile radio programming/configuration details.

Always refer to your mobile radio's service manual and the XCA Master Charts for correct configuration requirements. On the support page, you will also find the XGALA Audio adjustment level software tool. Use this together with the XFPK programming cables (found elsewhere in the store) to set the optimum audio levels in and out of the host-connected radio/communications device.

 BROCHURE

**Complete final assembly from local and overseas sourced materials and test in Delaware, USA.
