X10DR XLR Internal Vehicle Gateway Package - Model: XIVG/XLR2

Our new, Made In USA** XLR X10DR Wireless Microphones not only provide cutting-edge on-site local team coverage but the best in class "Out Of Vehicle" communications solution in the industry today. The cost effective choice for those that require Dual Control Head radio functionality as well as cutting-edge on-site local team coverage.Highly acclaimed, they provide the highest levels of AES tactical encryption protection available.

The innovative design of the XIVG-XLR Gateway now allows for better coverage within buildings, thanks to its ultra sleek housing design. By repackaging the XLR Gateway's electronic circuitry into a slim compact housing and locating it internally within a typical vehicle's roof lining, we greatly reduce cable losses* resulting in an impressive range of over 2000 plus feet, unobstructed line of sight. Additionally, the XIVG-XLR serves as a Repeater when used with multiple handsets, effectively doubling the range (4000ft plus) between 2 handsets.

*Operating on the 2.4GHz frequency band can result in noticeable levels of antenna coax cable losses. The highest quality coax cable experiences a 3dB loss on a 17 foot cable run, which is equivalent to losing half of the RF signal. This allows for greater penetration into buildings, making it superior to a standard gateway device.

BROCHURE

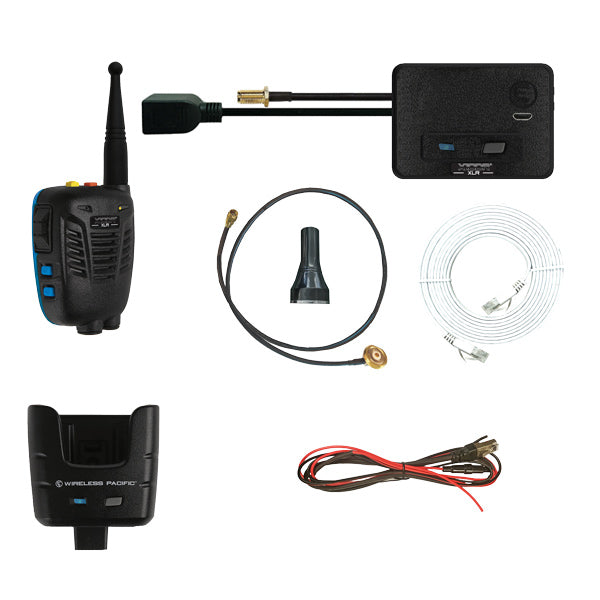

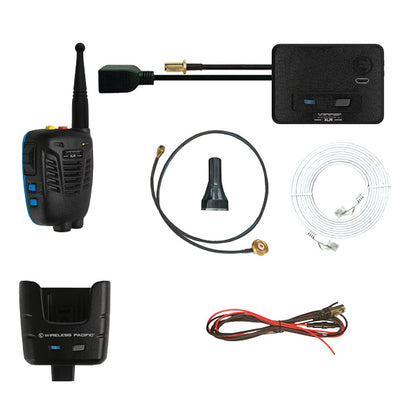

The standard XIVG-XLR Gateway includes:

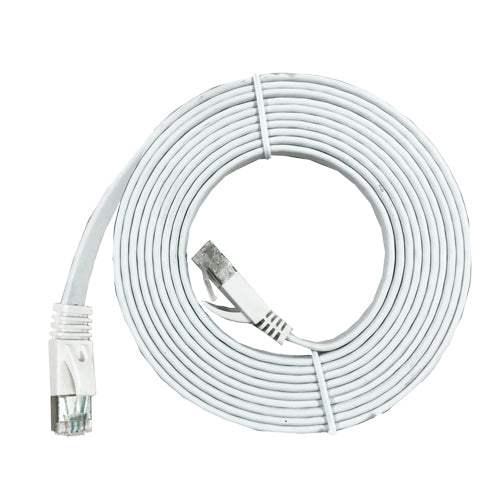

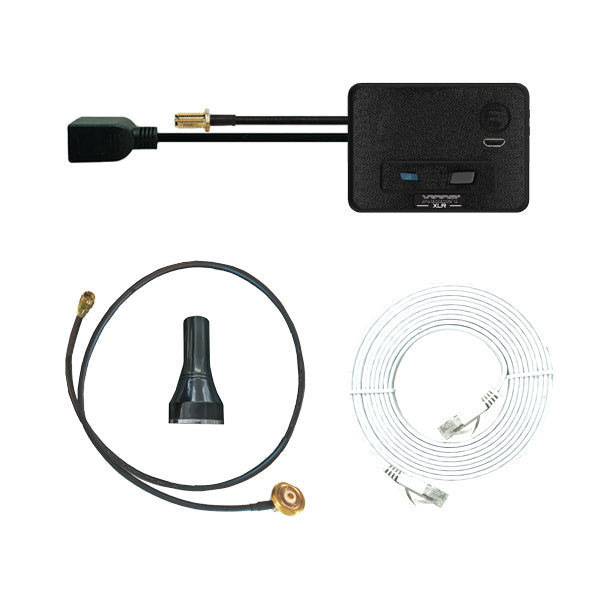

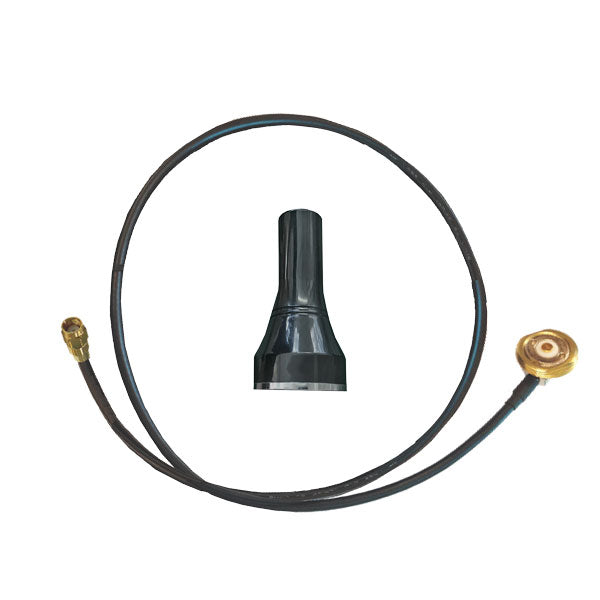

AES 128 Bit Encrypted,  XIVG-XLR internal mount gateway,XMPA-C3 multipolarity antenna with 3ft LMR200 coax cabling and a XIC-6.0 Outdoor shielded 6 meter - 20 foot interface cable is terminated with RJ45 connectors. Longer or shorter-length XIC cables can be ordered optionally.

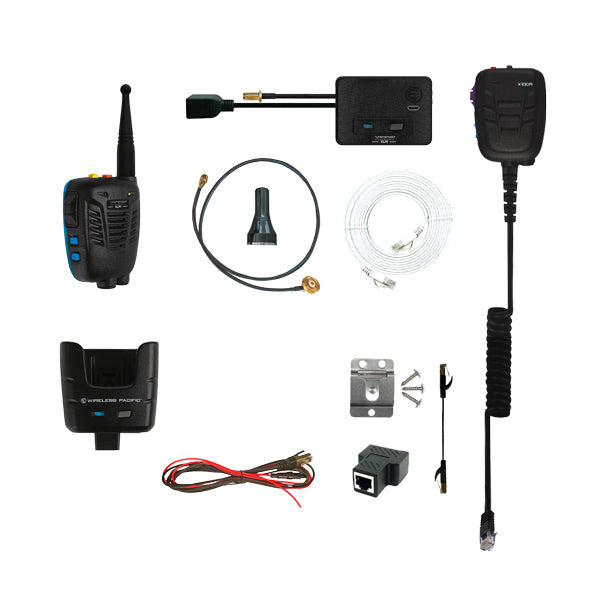

Talk Back Mic Option:

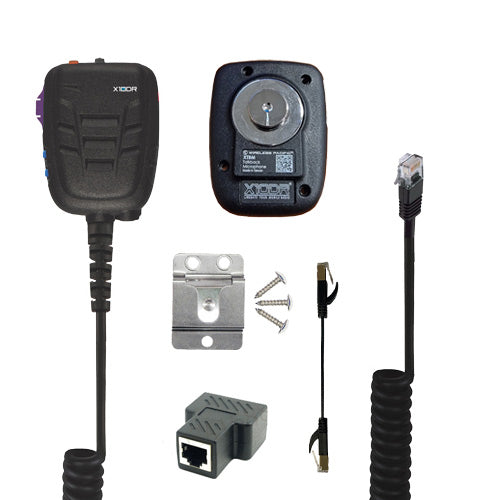

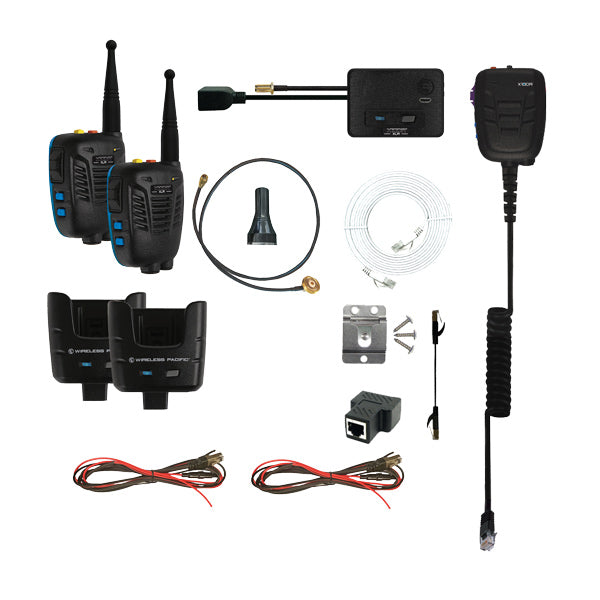

For even greater local on-site team communications, should the driver usually remain in the vehicle, an XTBM Talkback Mic can be installed so they can also monitor and communicate locally with their out-of-vehicle work partners.

XLR Hardware Creations:

XLR features a number of innovative and unique creations to allow X10DR better integrate with the attached radio solution and to enhance the user's operational needs and effectiveness.
- Loud speaker audio for noisy traffic jams or wild stormy conditions.
- Enhanced receive audio quality when connecting to breathing apparatus etc
- Mandown Monitor which locally alarms your nearby partner besides triggering the radio's emergency input, should the user become immobile for longer than the defined timing parameter.

Wireless Microphone Product Summary:

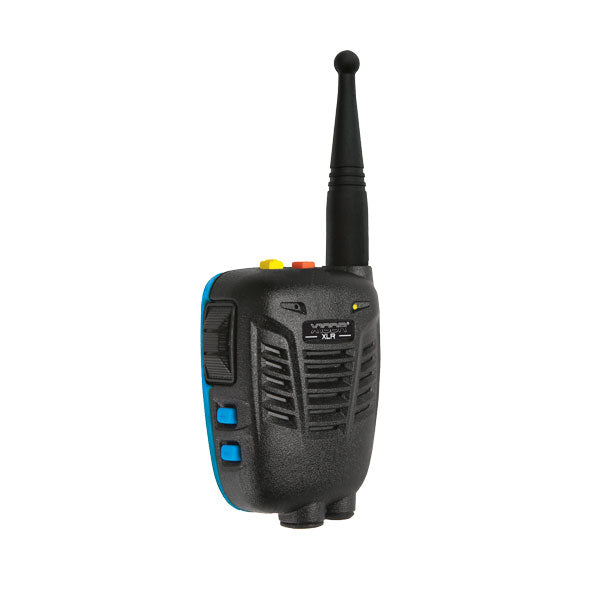

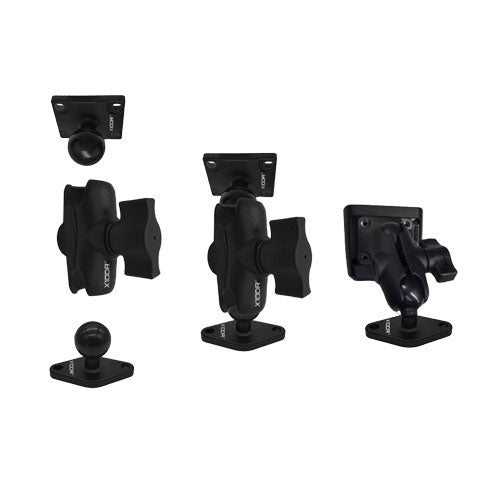

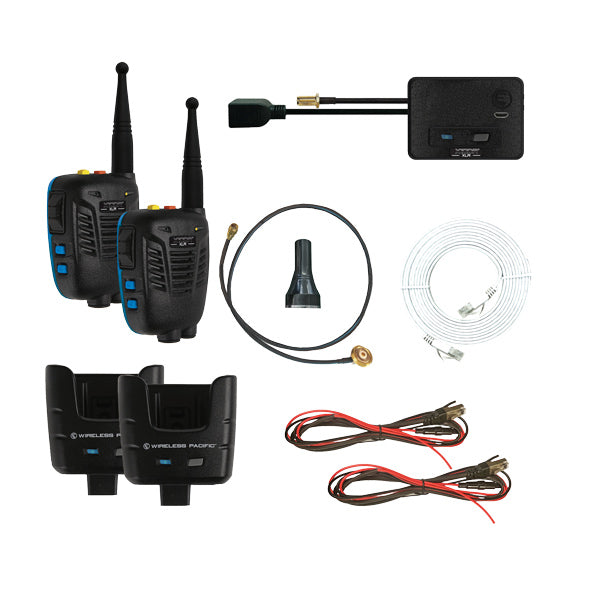

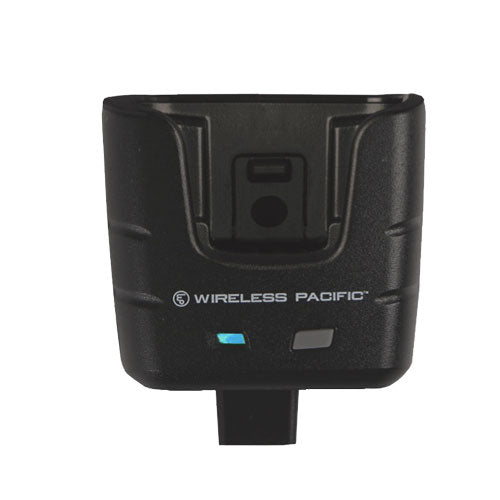

Single or Dual user with Automatic Relay mode, IP67 waterproof rated Wireless Microphones - Emergency duress call - Mandown Monitor, Toggle Network or local Talkaround PTT - Local handsfree intercom - Hirose Headset audio port - 3.5mm earlier jack - Enhanced ground independent antenna -1450mA Li-Polymer battery - integrated long non-metal clip - magnetic latching charging cradle-XMPM multi position Mount - XIVG XLR Internal Mount Gateway -  User card - 12-month warranty.

All XLR Wireless Microphones are equally at home connected via a vehicle or office mounted radio console, LTE-PoC, Sat-link, HF-SSB, Airband, etc communication device to the outside world. When used as such, the user's Wireless Microphones signal is typically repeated by a centrally located X10DR XLR gateway, which also provides the interconnection to land mobile, Iridium PTT, Satellite, or console devices. For advanced systems needs a XSJB Smart Junction Box can provide connection with two radio/network devices.

Order the XCA Interface Cable to suit your mobile radio from the drop-down box when purchasing to complete your vehicle fit-out. Please review the XCA Master Charts for mobile radio programming/configuration details.

Always refer to your mobile radio's service manual and the XCA Master Charts for correct configuration requirements. On the support page, you will also find the XGALA Audio adjustment level software tool. Use this together with the XFPK programming cables (found elsewhere in the store) to set the optimum audio levels in and out of the host-connected radio/communications device.

**Complete final Wireless Microphone assembly from local and overseas sourced materials and tested in Delaware, USA.
