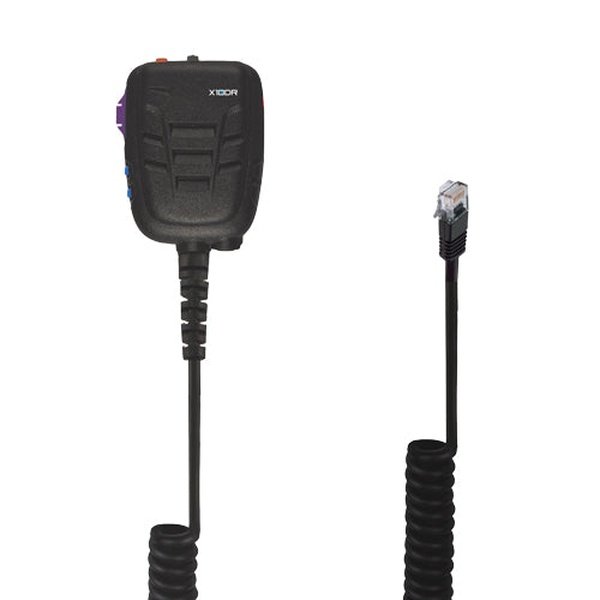

X10DR Talkback Mic Model: XTBM

Turns your X10DR-XLR gateway into a vehicle despatch console

The X10DR Talkback microphone has been designed specifically to allow a user remaining in the vehicle to maintain full communications with X10DR handset users out of the vehicle while maintaining the ability to instantly communicate with others over the host radio network.

Besides in cabin use, the XTBM weatherproof design means it could be mounted externally elsewhere on the vehicle, for example, next to the control panel on a a Fire Appliance.

Like the XLR series, the Grey Control button acts as an assignment toggle switch for the main side PTT button. Press it once and the side PTT button becomes the host Radio Transmit button and the status LED changes to BLUE to let the user know they are communicating out 'over the sky' to the radio network. Press it again and the side PTT button once more becomes the Talkaround PTT button with the LED changing back to GREEN to let the user know they are now talking 'locally on the ground' (default position).

Alternatively, the side PTT button can be permanently assigned to local talkaround PTT with Radio PTT function assigned to the grey button or vice versa to mimic a wireless X10DR default configuration. In either position, all X10DR wireless and wired handsets hear both sides of every conversation.

The true all informed, group communication network where everyone remains connected.

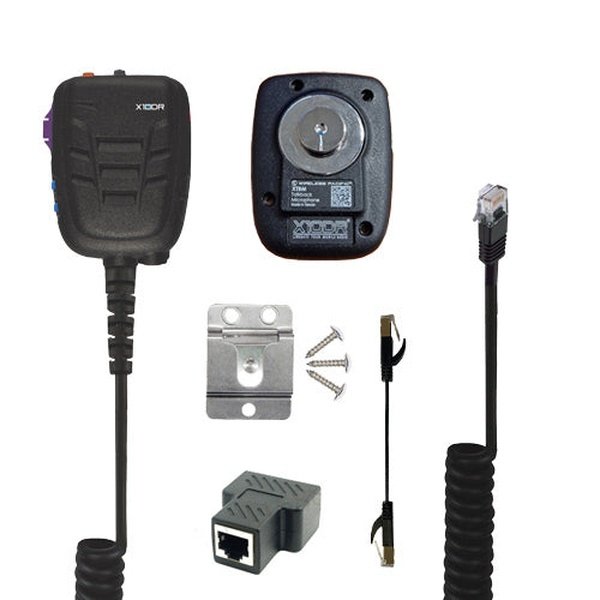

Includes all necessary items to add to any X10DR installation.
